Description

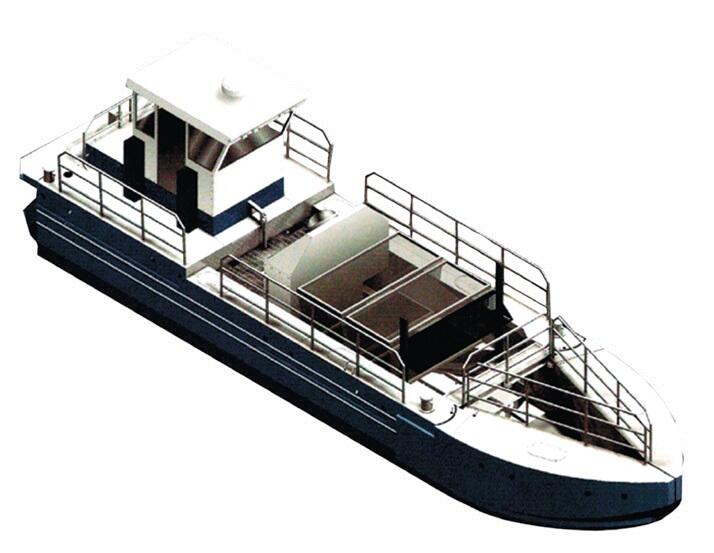

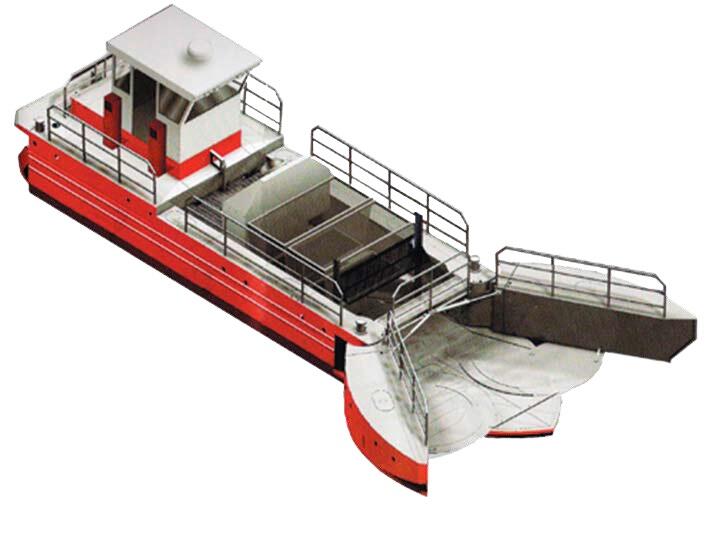

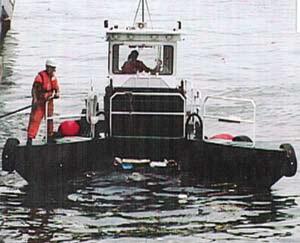

The SMAVE S48 is a complete multi-function pollution control system produced by ADVANCED ENVIRONMENTAL MARITIME TECHNOLOGIES. This system has been developed and improved upon continuously over the years and offers the most advanced pollution control technology available on the market today. The basic function being micro and macro waste recovery, it is ideally suited for hydrocarbon recovery, chemical dispersing, and water aeration, all of which can be performed simultaneously.

Specifications

Accommodation

Propulsion engine Cummins 6BT 5.9m
Fuel tank capacity 2 tanks total of 1200 liters
Fuel consumption / Autonomy @ Full rated speed (2500rpm) 87.7l/h , 20hrs
Fuel consumption / Autonomy @ Cruising mode 70% (2000rpm) 61.4l/h , 25hrs
Fuel consumption / Autonomy @ Working mode 30% (1750 rpm) 61.4l/h , 30hrs

Construction

The SMAVE S48 is a complete multi-function pollution control system produced by ADVANCED ENVIRONMENTAL MARITIME TECHNOLOGIES. This system has been developed and improved upon continuously over the years and offers the most advanced pollution control technology available on the market today. The basic function being micro and macro waste recovery, it is ideally suited for hydrocarbon recovery, chemical dispersing, and water aeration, all of which can be performed simultaneously.
Debris Collection System: This system is installed behind the stem and consists of a hydraulically activated retractable bucket (capacity of 0.25 m3) a holding grate and a containment bin (capacity of 3 m3).
Hydrocarbon Recovery System: The unit with a recovery efficiency of over 90% is installed at midship and comes complete with hydraulic pump (capacity of 24 m3/hour) a self-contained storage canister (capacity of 115 liters) and quick connects for easy removal.

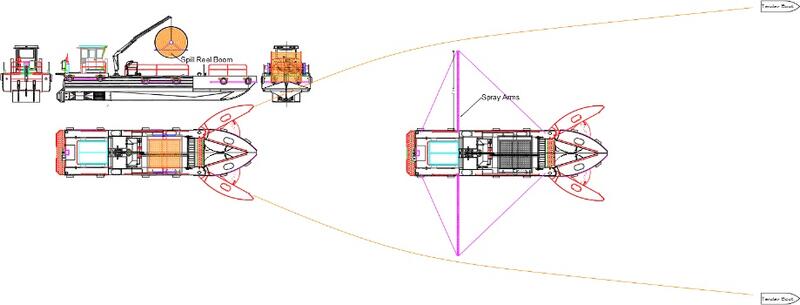

Chemical Dispersal System: This unit is installed at the stern with a holding capacity of 60 liters which can spread hydrocarbon dispersing agents, lime or alkaline agents.
Water Aeration System: This unit with a capacity of 3400 m3/hour of air is installed at the stern and consists of vertical venturi’s which can inject air to a depth of 10m (adjustable) and width of 30m enhancing the recovery of submerged garbage.
Water Cannon System: This optional accessory consists of an auxiliary diesel engine, water pump and monitor. The water pump is driven by the auxiliary diesel engine with a capacity of 3400 liters/min at 8 bar.

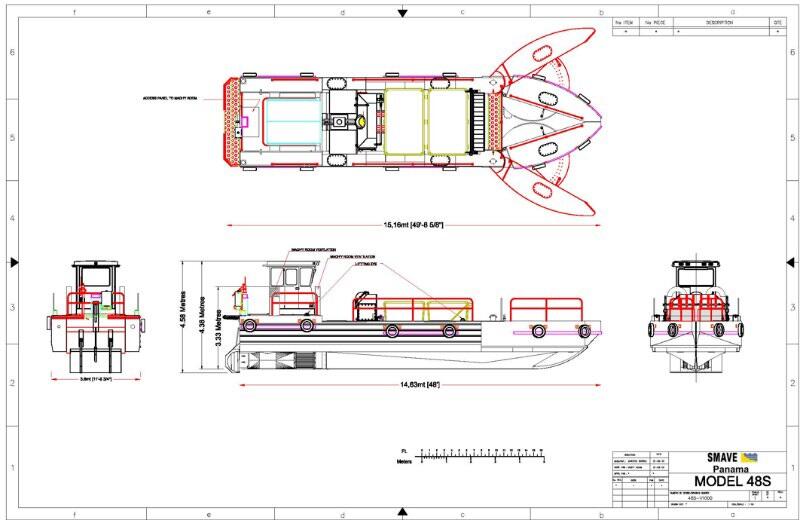

Length overall: 15.2m
Beam width: 3.65m
Draft (empty): 1.1m
Light weight 10 tons
Cruising speed 11 - 14 knots under Beaufort scale sea state (2)
Working speed Up to 3 knots
Rotates in radius 1.5 times of the vessel overall length

Hull, Vessel Structure Mild steel, Welded
Cabin Marine aluminum alloy, removable
Shock protection Rubber fenders

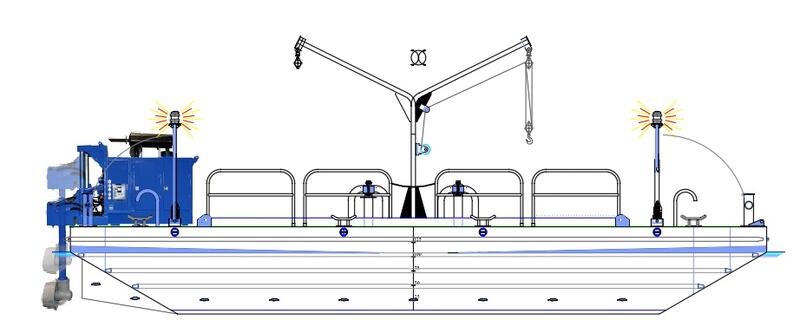

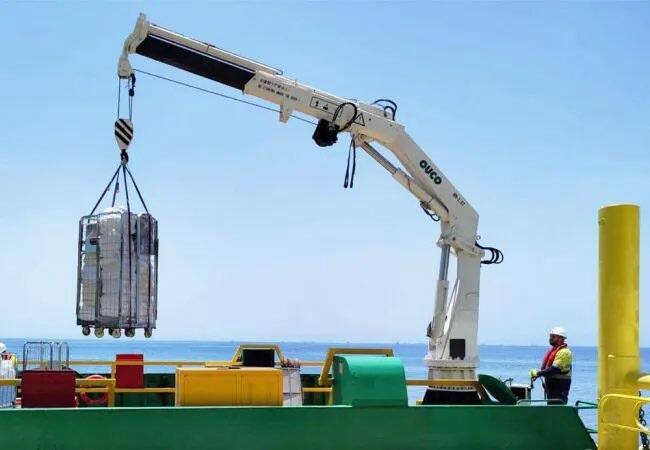

Deck assistance Marine foldable Crane, Hydraulic, 520kg

Certification

Various engine and pump displacements may be used, consult our technicians for proper selection.

Disclaimer

The particulars and specifications are supplied by the vendor and not SeaBoats. Such information has not been verified and may be incorrect. Please do not rely on particulars and specifications unless you have verified their accuracy.
