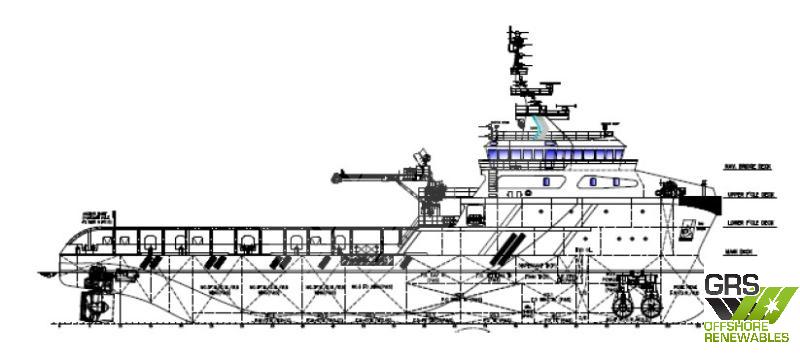

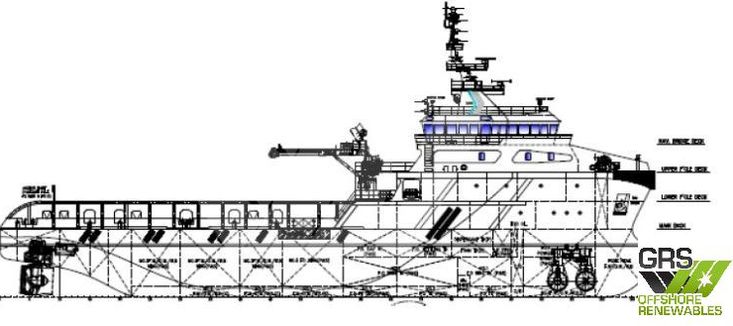

Description

LOA 64.8 m
Beam 16 m
Draft 5.4 m

Dynamic Positioning of class : DP 2
Free Deck area about 420m² with a deck strength of 7.5 metric tonnes per square meter
Capable of supplies of 580m³ Fuel Oils, 320m³ FW, 450m³ Liquid Mud and 450m³ Brine
Fire Fighting System of type FiFi 1 installed
1 Crane / Gear installed with a max lifting capacity of 5 tons
1 AF installed with a max lifting capacity of 20 tons

Built in year 2026
Class : American Bureau of Shipping
Flag : Malaysia
Gross Tonnage of 2,290 and Nett Tonnage of 687

Deadweight : 1,600 metric tonnes

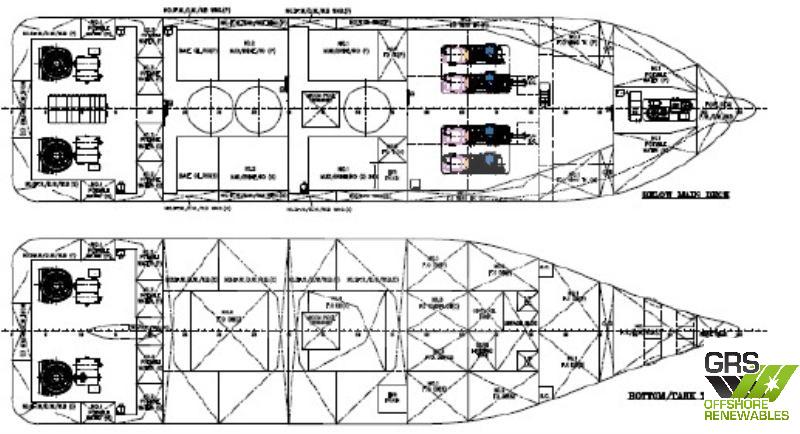

Moon pool 3.2m x 3.2m installed

Total 60 berths

Speed : 12.5 knots
Engines : 4 x Cummins / Chongqing Cummins Engine, Propellers 1 x Port Side + 1 x Starboard
Auxiliaries Engines : Bowthruster + Sternthruster (2 Bow 600kw Transverse tunnel + 2 Stern 1,800kw Azimuth)

Specifications

Engine(s)

4 x , Cummins / Chongqing Cummins Engine,
Propellers: 1 x Port Side + 1 x Starboard
