Description

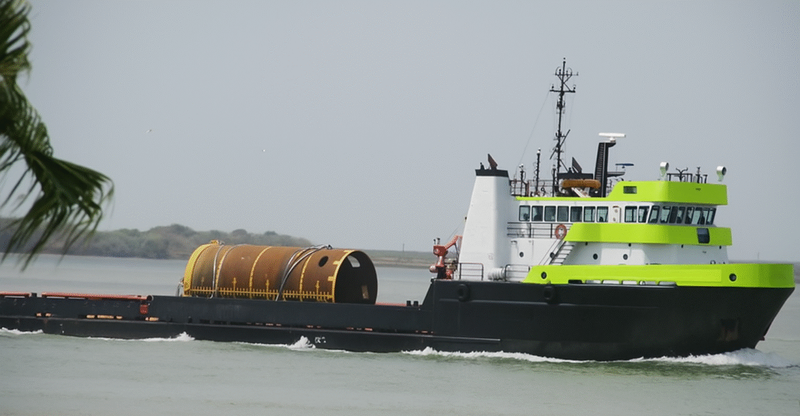

This vessel measures 67.1 m in length and 14.0 m in beam, with a gross tonnage of 1,254 T and net tonnage of 376 T. It is classed under the American Bureau of Shipping and holds certifications including Oceans, SIP, USCG Subchapter I and L.

Powered by 2 x EMO 16-645 E2 main engines delivering a total of 3,900 hp, the vessel achieves a maximum speed of 12.0 kts (fuel consumption approx. 814 L/h) and cruises comfortably at 10.0 kts (fuel consumption approx. 454 L/h). Propulsion is provided by 4-blade fixed pitch propellers of 2,438 mm diameter, assisted by bow and stern thrusters rated at 755 hp and 525 hp respectively, with independent spade-type rudders.

The vessel’s draft ranges from a minimum of 2.74 m to a maximum of 4.17 m. It has a deadweight capacity of 1,651 MT and can carry 1,046 MT of deck cargo over a 487.2 m² deck area rated for 3 MT/m².

Liquid capacities include 230 m³ dry bulk, 485 m³ each for brine and liquid mud, 105 m³ potable water, 333 m³ rig fuel, and 363 m³ rig water. Additional refrigerated storage includes 13 m³ cooler and 11 m³ freezer space. The vessel features one off-ship firefighting monitor with a total flow rate of 546 m³/h.

Delivery rates for key fluids include 273 m³/h for both brine and liquid mud, 86 m³/h for rig fuel, and 91 m³/h for rig water, all at a system pressure of 5.5 bar.

Electronics include autopilot, C-Nav, DGPS, S-band and X-band radars, GMDSS A3, EPIRB, CCTV, gyro and magnetic compasses, joystick control, and multiple VHF radios.

Accommodations consist of 10 air-conditioned/ heated staterooms, certified for 22 persons on-board.

Specifications

Disclaimer

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A Buyer should instruct his agents, or his surveyors, to verify such details as per Buyer desires (project plans/scopes of work) are validated.

This vessel is offered subject to availability, price change, or withdrawal without notice.
