Description

Ice Classed

Ice Class Oil Recovery & Platform Supply Vessel

Possible to deliver with fresh certificates.

Specifications

Construction

*Clear Deck: 169 ft. x 50.5 ft. x meters: 51.51 m x 15.40 m

Cargo Deck Area: 8,535 SQ. ft. x meters: 794 SQ. m
Deck Strength: 1,200 lb/sq. ft. x meters: 5.86 MT/sq. m

Deck Cargo Capacity: 2,100 LT @ 3’ Above Main Deck 2,134 MT
Deadweight Tonnage: 4,253 LT 4,321.25 MT

Equipment

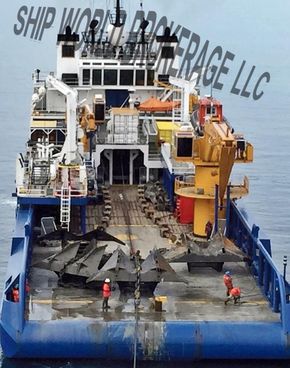

Towing and Anchor Handling (Deck Equipment)

Deck Tuggers: Two (2) x 25 MT Capacity (FWD) Tuggers
Deck Tuggers: Two (2) x 25 MT Capacity (AFT)
Anchor Handling Winch; One (1) x 250 MT Watertail Type /
Winch (1,400 m of 58mm dia.)
Tow Pins: One (1) x 200 MT S.W.L. Retractable Tow Pin
Shark Jaws: One (1) x 350 MT S.W.L. Retractable Shark Jaw.

Engine(s)

Main Engines: Two (2) x 3,608 CAT Diesels. 3.634 BHP Each
Speed: 15 knots
Bow Thrusters: Two (2) x 1,700 HP Each Tunnel Thrusters
Stern Thrusters: One (1) x 1,700 HP Tunnel Thruster
Emergency Generators: One (1) x John Deer, 166 kW
Ships Service Generators: Two (2) CAT 3508 Generators @ 910 kW each
Shaft Generators: Two (2) x 2,050 kW 6.6 kv

Disclaimer

Specifications are provided for general information only. We cannot guarantee the correctness of given information or be liable for any inaccuracy or warrant the condition of yachts. All dimensions, capacities, speeds etc. are approximate. All information given is subject to fair, wear and tear. We therefore recommend clients to have yachts, specifications and information thoroughly checked and surveyed for accuracy by an independent qualified marine surveyor and purchase only subject to satisfied survey and sea trial. Yachts are offered subject to still being for sale. Unless seller and purchaser have agreed this specification and information in signing in contract, we reserve the right to change specification, price etc. without prior notice. We are not responsible for the outcome of our publications and activities as result thereof.
